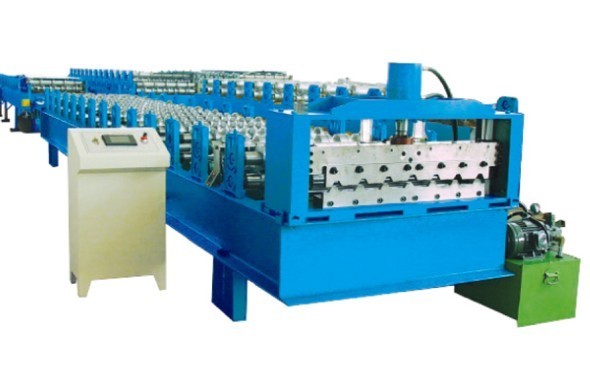

Customized Metal Roof / Wall Cold Roll Forming Machinery With SGS certificate

Specifications

Metal Roof/Wall Forming Machine
With SGS certificate
rollers are processed with CNC machine to make s size more accuracy

Cold roll forming machine
1.Used to make metal roof or wall;
2.Thickness: 0.4-0.7mm
3.Clients' profile can be designed here.

Cold roll forming machine

Machine components:

Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.

Main technical parameters:

1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.4-0.8mm

3. Yield strength of material: 235Mpa-345Mpa

4. Forming speed: about 15m/min

5. Power Requirement Main motor power: 5.5Kw (Depend on final design)

Hydraulic station power: 2.2Kw (Depend on final design)

6. Uncoilers loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)

7. Controlling system: Mitsubishi PLC & Converter

8. Machines weight: about 9-14T for different profile machine.

9. Machines size: about 8m×1.5m× 1.2m (Depend on final design)

Material of Main Equipment

Roller Material: High grade No.45 forged steel, with digital-controlled procession,

Plated with hard chrome.

Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm.

Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade: Cr12 mould steel with quenched treatment
